Usually ships in 40 business days

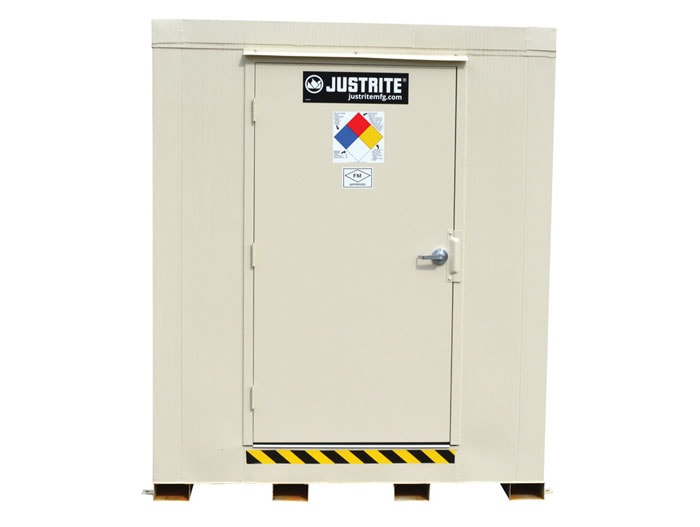

Product Summary
- 2-hour fire-rated construction for safe and secure storage of flammables and combustibles
- 90-minute fire rated door
- Meets EPA, NFPA 30 and NFPA 1 requirements; FM-approved
- Customizable with a variety of optional features and accessories
Specifications Download Specification PDF
| Model No | 912160 |
|---|---|
| UPC | 697841158696 |
| Brand | Justrite |
Description
Standard features include:
- 2-hour fire-rated construction — backed by a 15-year structural warranty
- 90-minute fire-rated door — third party tested and labeled
- Gravity air flow vents — UL Listed fire dampers with fusible links
- Secondary containment — leakproof all welded sump
- Removable, galvanized steel grate flooring
- 42-inch (1.07-m) wide door with UL Listed, keyed lockset for security
- Door closer — ensures doors close automatically
- NFPA 704 diamond decal provides "Right to Know" information
- Multiple static grounding connections
- Anchoring plates for maximum hold down protection
- Chemical and UV resistant coating, inside and out
- Forklift channels for easy relocation
- Meets EPA, NFPA 30 and NFPA 1 requirements
- FM-approved — including third party tested, fire-rated wall and roof design
Customize the locker to meet specific applications with a variety of optional features and accessories, including loading ramp, shelving, grounding kit, fire protection, heating/cooling, insulation, and lighting packages.
NOTE: Exterior dimensions include anchoring plates and door hardware.
Specifications
| Model No | 912160 |
|---|---|
| UPC | 697841158696 |
| Brand | Justrite |
| International Model No. | 912160 |
| Color | Bone |
| Material Specifications | Steel |
| FM Approval | Yes |
| UL Approval | Doors |
| Complies with NFPA Code 30 | Yes |
| Complies with NFPA 1 Fire-Code | Yes |
| EPA Compliance | yes |
| Exterior Dimensions, inches | 99" H x 119" W x 114" D |
| Exterior Dimensions, mm | 2515mm H x 3023mm W x 2896mm D |
| Interior Dimensions, inches | 82.5" H x 101.5" W x 101.5" D |
| Interior Dimensions, mm | 2096mm H x 2578mm W x 2578mm D |
| 55-Gallon Drum Capacity | 16 |
| Base Capacity, lbs | 16000 |
| Base Capacity, kg | 7257.5 |
| Number of Doors | 1 |
| Door Style | Fire-rated |
| Door Hinge | Left |
| Door Height inch | 80 |
| Door Width inch | 42 |
| Door Height mm | 2032 |
| Door Width mm | 1067 |
| Sump Capacity, gallons | 288 |
| Sump Capacity, liters | 1090 |
| Sump Depth - inch | 7.0 |
| Sump Depth - mm | 178 |
| Storage Capacity cubic feet (Int Volume) | 492 |
| Storage Capacity cubic meters (Int Volume) | 13.9 |
| Net Weight, lbs | 5910.0 |
| Net Weight, kgs | 2680.8 |
