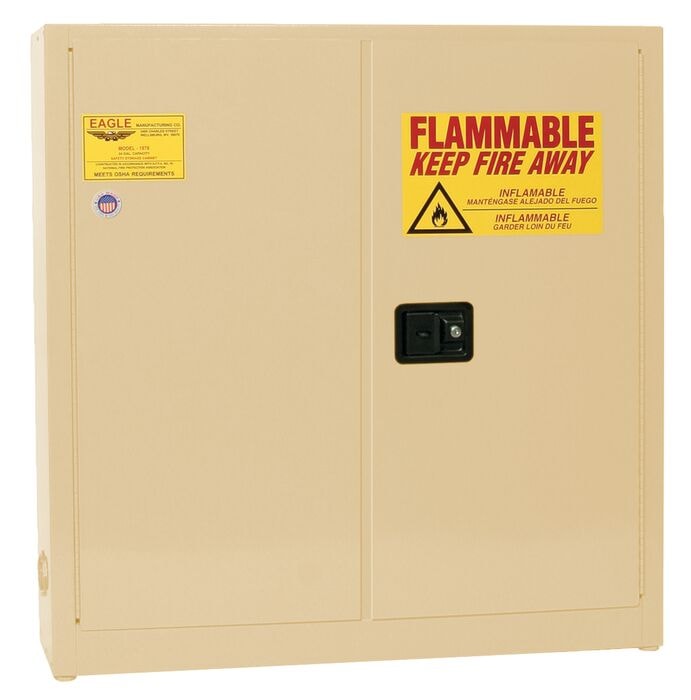

24 Gallon Fire Cabinet, 3 Shelves, 2 Doors, Manual Close, Wall Mount, Beige - 1976XBEI

Model No
1976XBEI
$1,380.00

Usually ships in 1-2 days Please contact customer service at
800-798-9250 for lead times.

Warranty icon

Made in USA

Compliance OSHA Compliance Complies with NFPA Code 30
Approvals FM Approval

Product Summary

  • Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
  • Constructed of 18-gauge steel
  • Lead-free, high-gloss, baked-on powder finish
  • Continuous piano hinges
  • Ground connection
  • Four adjustable galvanized leveling legs
  • Trilingual warning labels
  • 2 in (5.1 cm) raised leakproof sill
  • Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
  • Internal and external welded construction
  • Two 2 in (5.1 cm) internal vents with fire baffle and cap
  • Flush mounted door handle with key lock
  • Three-point stainless steel bullet latching system
  • 3 in (7.6 cm) centers for shelf brackets
  • Self-latching doors
  • Door closings: Manual Close (180° opening)

Description

24 Gallon, manual close, Wall Mount Flammable Liquid Safety Cabinet is constructed of 18-gauge (1 mm) steel. The sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Includes wall-mounting brackets. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements. Wall mounting hardware is included.

Specifications

More Information
Model No 1976XBEI
Color Beige
Material Specifications 18-Gauge Steel
FM Approval Yes
OSHA Compliance Yes
Complies with NFPA Code 30 Yes
Door Style Manual Close
UPC 048441690770
Dimensions, Exterior 43W x 12Dx 44H
Dimensions, Interior 39.75" W x 8.75" D x 39.5" H (101 x 22.2 x 100.3 cm)
Number of Doors 2
Number of Shelves 3
Lock Yes
Gallon Capacity 24
Liter Capacity 90.85
Replacement Shelf Model No. 29938
Shelf Depth 8.6" (21.9 cm)
Net Weight, lbs 189
Net Weight, kgs 85.73
Adjustable Shelf Yes
