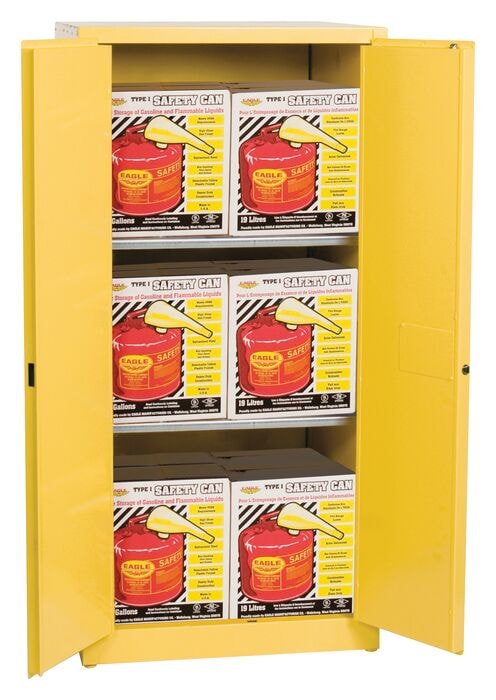

60 Gallon Fire Cabinet, 2 Shelves, 2 Door, Manual Close, Combo with 12 UI50FS Safety Cans, Yellow - 1962XSC12

Model No
1962XSC12
$2,200.00

Usually ships in 1-2 business days

Warranty icon

Made in USA

Compliance OSHA Compliance Complies with NFPA Code 30
Approvals FM Approval

Product Summary

  • Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
  • Constructed of 18-gauge steel
  • Lead-free, high-gloss, baked-on powder finish
  • Continuous piano hinges
  • Ground connection
  • Four adjustable galvanized leveling legs
  • Trilingual warning labels
  • 2 in (5.1 cm) raised leakproof sill
  • Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
  • Internal and external welded construction
  • Two 2 in (5.1 cm) internal vents with fire baffle and cap
  • Flush mounted door handle with key lock
  • Three-point stainless steel bullet latching system
  • 3 in (7.6 cm) centers for shelf brackets
  • Self-latching doors
  • Door closings: Manual Close (180° opening)

Description

Eagle Flammable Liquid Safety Cabinet Combo is a standard 45 Gallon, manual closing cabinet with 2 shelves and 12 UI50FS safety cans. Constructed of 18-gauge (1 mm) steel, the sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements.

Specifications

More Information
Model No 1962XSC12
Color Yellow
Material Specifications 18-Gauge Steel
FM Approval Yes
OSHA Compliance Yes
Complies with NFPA Code 30 Yes
Door Style Manual Close
UPC 048441692057
Dimensions, Exterior 34W x 34Dx 65H
Dimensions, Interior 30.75" W x 30.34" D x 60.5" H (78.1 x 77.1 x 153. 7 cm)
Number of Doors 2
Number of Shelves 2
Uniform Fire Code No
Lock Yes
Gallon Capacity 60
Liter Capacity 227.12
Replacement Shelf Model No. 29944
Shelf Depth 29" (73.7 cm)
Net Weight, lbs 417
Net Weight, kgs 189.15
Adjustable Shelf Yes
