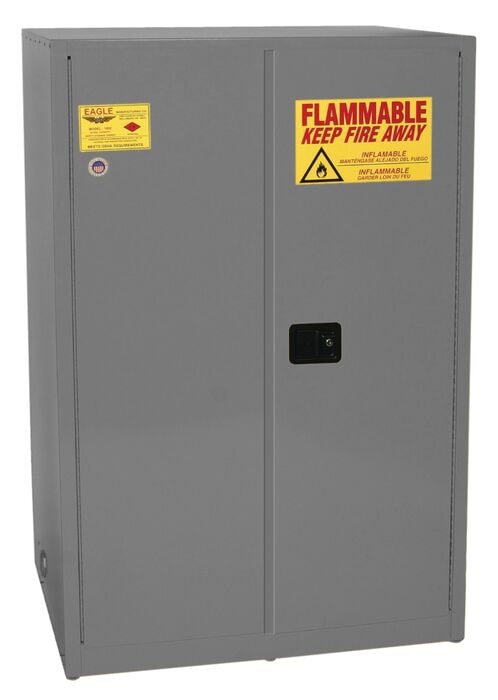

90 Gallon Fire Cabinet, 2 Shelves, 2 Doors, Manual Close, Gray - 1992XGRAY

Model No
1992XGRAY
$2,300.00

Made in USA

Usually ships in 10 days Please contact customer service at
800-798-9250 for lead times.

Need a bulk or special order? Get a quote

Compliance OSHA Compliance Complies with NFPA Code 30
Approvals FM Approval

Product Summary

  • Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
  • Constructed of 18-gauge steel
  • Lead-free, high-gloss, baked-on powder finish
  • Continuous piano hinges
  • Ground connection
  • Four adjustable galvanized leveling legs
  • Trilingual warning labels
  • 2 in (5.1 cm) raised leakproof sill
  • Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
  • Internal and external welded construction
  • Two 2 in (5.1 cm) internal vents with fire baffle and cap
  • Flush mounted door handle with key lock
  • Three-point stainless steel bullet latching system
  • 3 in (7.6 cm) centers for shelf brackets
  • Self-latching doors
  • Door closings: Manual Close (180° opening)

Description

90 Gallon, manual close, Flammable Liquid Safety Cabinet is constructed of 18-gauge (1 mm) steel. The sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements.

Specifications

More Information
Model No 1992XGRAY
Color Gray
Material Specifications 18-Gauge Steel
FM Approval Yes
OSHA Compliance Yes
Complies with NFPA Code 30 Yes
Door Style Manual Close
UPC 048441692163
Dimensions, Exterior 43W x 34Dx 65H
Dimensions, Interior 39.5" W x 30.34" D x 60.5" H (100.3 x 77.1 x 153.7 cm)
Number of Doors 2
Number of Shelves 2
Lock Yes
Gallon Capacity 90
Liter Capacity 340.69
Replacement Shelf Model No. 29945
Shelf Depth 29" (73.7 cm)
Net Weight, lbs 379
Net Weight, kgs 171.91
Adjustable Shelf Yes
