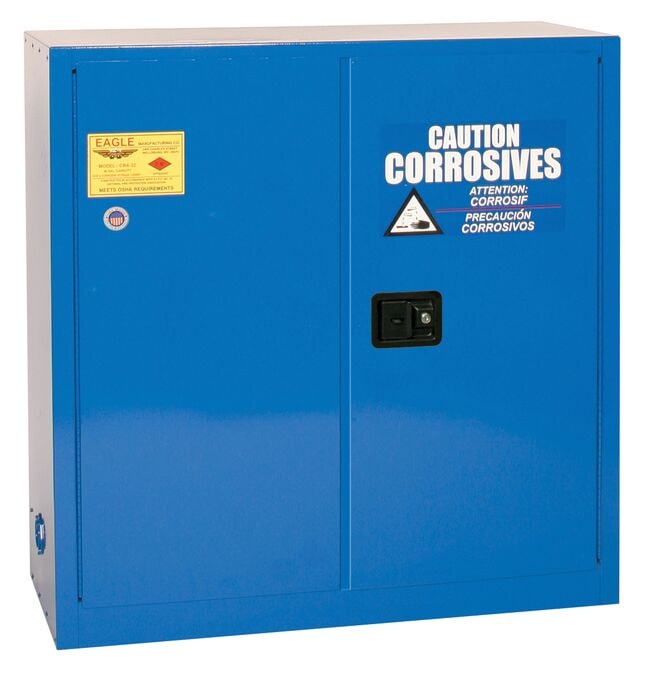

30 Gallon, 1 Shelf, 2 Door, Self Close, Metal Corrosive Safety Cabinet, Blue - CRA3010X

Name: 30 Gallon, 1 Shelf, 2 Door, Self Close, Metal Corrosive Safety Cabinet, Blue - CRA3010X
Brand: Eagle Manufacturing
SKU: CRA3010X
Price: 1700.00 USD
Availability: InStock

Model No

CRA3010X

$1,700.00

Usually ships in 7 days Please contact customer service at
800-798-9250 for lead times.

Made in USA

Get a Quote

Compliance

Approvals FM Approval

Overview

Product Summary

Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
Constructed of 18-gauge steel
Lead-free, high-gloss, baked-on powder finish
Continuous piano hinges
Ground connection
Four adjustable galvanized leveling legs
Trilingual warning labels
2 in (5.1 cm) raised leakproof sill
Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
Internal and external welded construction
Two 2 in (5.1 cm) internal vents with fire baffle and cap
Flush mounted door handle with key lock
Three-point stainless steel bullet latching system
3 in (7.6 cm) centers for shelf brackets
Self-latching doors
Door closings: Self-Closing (135° opening)
Concealed self-close mechanism provides obstruction-free access to top shelf space
Self-indexing doors guarantee they will close in sequence and ensure a tight closure from top to bottom

WARNING:This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Description

Eagle 30 Gallon, self-closing, Acid Corrosive Safety Cabinet is constructed of 18-gauge (1 mm) steel. The sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a corrosion-resistant powder coat finish and includes trilingual warning label, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Includes poly shelf and sump trays to help contain small spills and provide extra corrosion protection. Not recommended for use with Sulfuric, Nitric or Hydrochloric acids. Cabinets are FM-approved and meet NFPA Code 30 and OSHA requirements.

Specifications

More Information
Model No	CRA3010X
Color	Blue
Material Specifications	18-Gauge Steel
FM Approval	Yes
OSHA Compliance	Yes
Complies with NFPA Code 30	Yes
Door Style	Self-close
UPC	048441690992
Dimensions, Exterior	43W x 18Dx 44H
Dimensions, Interior	39.5" W x 14.6" D x 39.5" H (100.3 x 37 x 100.3 cm)
Number of Doors	2
Number of Shelves	1
Uniform Fire Code	Yes
Lock	Yes
Gallon Capacity	30
Liter Capacity	113.56
Replacement Shelf Model No.	29937
Pallet Quantity	1
Shelf Depth	14" (35.6 cm)
Net Weight, lbs	201
Net Weight, kgs	91.17
Adjustable Shelf	Yes
