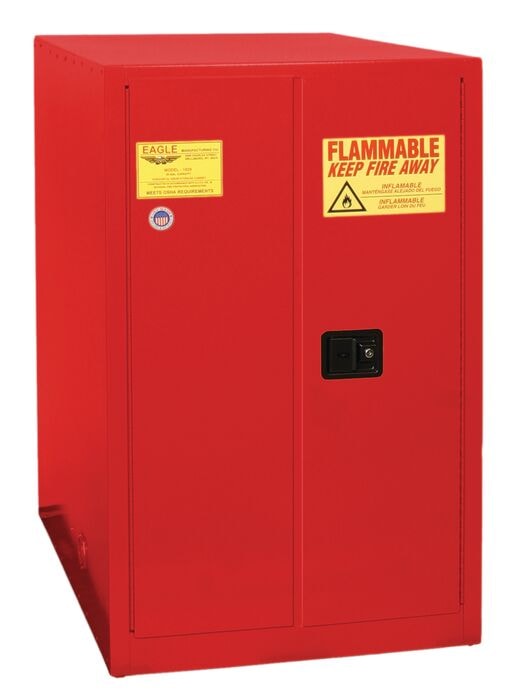

55 Gallon 1 Drum, Horizontal, 2 Door, Manual Close, Safety Cabinet, Red - 1928XRED

Model No
1928XRED
$2,700.00

Usually ships in 50 business days

Warranty icon

Made in USA

Compliance OSHA Compliance Complies with NFPA Code 30
Approvals FM Approval

Product Summary

  • Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
  • Constructed of 18-gauge steel
  • Lead-free, high-gloss, baked-on powder finish
  • Continuous piano hinges
  • Ground connection
  • Four adjustable galvanized leveling legs
  • Trilingual warning labels
  • 2 in (5.1 cm) raised leakproof sill
  • Internal and external welded construction
  • Two 2 in (5.1 cm) internal vents with fire baffle and cap
  • Flush mounted door handle with key lock
  • Three-point stainless steel bullet latching system
  • Self-latching doors
  • Door closings: Manual Close (180° opening)

Description

Eagle 55 Gallon, manual close, Horizontal Drum Storage Safety Cabinet, can safely contain a 55-gallon drum of flammable liquid. The cabinet features drum supports for use with optional horizontal drum cradle, model no. 08800. Constructed of 18-gauge (1 mm) steel, the sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements.

Specifications

More Information
Model No 1928XRED
Color Red
Material Specifications 18-Gauge Steel
FM Approval Yes
OSHA Compliance Yes
Complies with NFPA Code 30 Yes
Door Style Manual Close
UPC 048441692491
Dimensions, Exterior 30W x 48Dx 50H
Dimensions, Interior 26.75" W x 44.8" D x 45.5" H (67.9 x 113.7 x 115.6 cm)
Number of Doors 2
Lock Yes
Gallon Capacity 55
Liter Capacity 208.2
Net Weight, lbs 323
Net Weight, kgs 146.51
