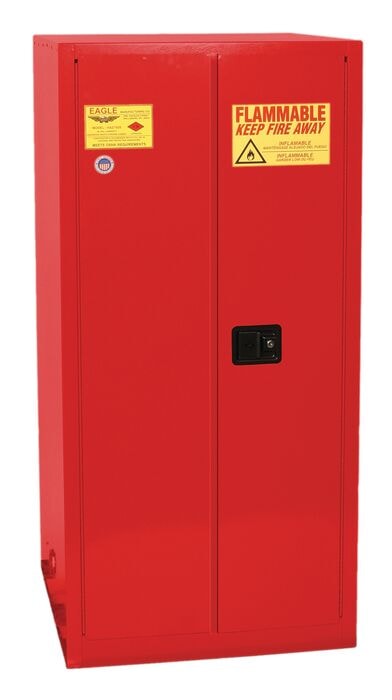

55 Gallon, 1 Drum, Vertical, 1 Shelf, 2 Door, Self Close, Safety Cabinet, Red - 2610XRED

Model No
2610XRED
$2,300.00

Usually ships in 10 business days

Warranty icon

Made in USA

Compliance OSHA Compliance Complies with NFPA Code 30
Approvals FM Approval

Product Summary

  • Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
  • Constructed of 18-gauge steel
  • Lead-free, high-gloss, baked-on powder finish
  • Continuous piano hinges
  • Ground connection
  • Four adjustable galvanized leveling legs
  • Trilingual warning labels
  • 2 in (5.1 cm) raised leakproof sill
  • Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
  • Internal and external welded construction
  • Two 2 in (5.1 cm) internal vents with fire baffle and cap
  • Flush mounted door handle with key lock
  • Three-point stainless steel bullet latching system
  • 3 in (7.6 cm) centers for shelf brackets
  • Self-latching doors
  • Door closings: Self-Closing (135° opening)
  • Concealed self-close mechanism provides obstruction-free access to top shelf space
  • Self-indexing doors guarantee they will close in sequence and ensure a tight closure from top to bottom

WARNING:This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Description

Eagle 55 Gallon, self-closing, Vertical Drum Storage Safety Cabinet, can safely contain a 55-gallon drum of flammable liquid. The cabinet features a convenient half shelf for additional storage space for accessories or containers and drum supports to keep drums elevated off cabinet sump. Constructed of 18-gauge (1 mm) steel, the sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements.

Specifications

More Information
Model No 2610XRED
Color Red
Material Specifications 18-Gauge Steel
FM Approval Yes
OSHA Compliance Yes
Complies with NFPA Code 30 Yes
Door Style Self-close
UPC 048441692309
Dimensions, Exterior 34W x 34Dx 65H
Dimensions, Interior 30.75" W x 30.34" D 60.5" H (78.1 x 77.1 x 153.7 cm)
Number of Doors 2
Number of Shelves 1
Lock Yes
Gallon Capacity 55
Liter Capacity 208.2
Replacement Shelf Model No. 29946
Shelf Depth 14" (35.6 cm)
Net Weight, lbs 347
Net Weight, kgs 157.4
Adjustable Shelf Yes
