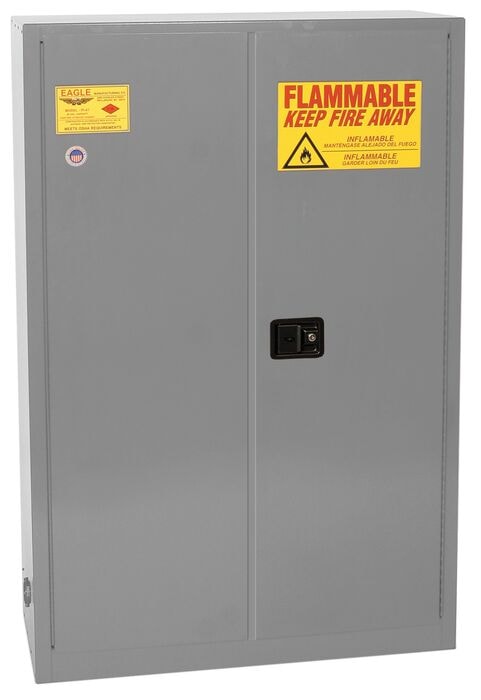

60 Gallon, 5 Shelves, 2 Doors, Sliding Self Close, Paint Safety Cabinet,Gray - PI45XGRAY

Model No
PI45XGRAY
$2,800.00

Usually ships in 15 days Please contact customer service at
800-798-9250 for lead times.

Warranty icon

Made in USA

Compliance OSHA Compliance Complies with NFPA Code 30
Approvals FM Approval

Product Summary

  • Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
  • Constructed of 18-gauge steel
  • Lead-free, high-gloss, baked-on powder finish
  • Continuous piano hinges
  • Ground connection
  • Four adjustable galvanized leveling legs
  • Trilingual warning labels
  • 2 in (5.1 cm) raised leakproof sill
  • Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
  • Internal and external welded construction
  • Two 2 in (5.1 cm) internal vents with fire baffle and cap
  • Flush mounted door handle with key lock
  • Three-point stainless steel bullet latching system
  • 3 in (7.6 cm) centers for shelf brackets
  • Self-latching doors
  • Door closings: Self-Closing (90° opening)
  • Concealed self-close mechanism provides obstruction-free access to top shelf space
  • Self-indexing doors guarantee they will close in sequence and ensure a tight closure from top to bottom

WARNING:This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Description

Eagle 60 Gallon, sliding self-close, Paint and Ink Safety Cabinets come with additional shelves to maximize storage space. Constructed of 18-gauge (1 mm) steel, the sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements.

Specifications

More Information
Model No PI45XGRAY
Color Gray
Material Specifications 18-Gauge Steel
FM Approval Yes
OSHA Compliance Yes
Complies with NFPA Code 30 Yes
Door Style Bi-Fold
UPC 048441691739
Dimensions, Exterior 43W x 18Dx 65H
Dimensions, Interior 39.5" W x 14.56" D x 60.5" H (100.3 x 37 x 153.7 cm)
Number of Doors 2
Number of Shelves 5
Lock Yes
Gallon Capacity 60
Liter Capacity 227.12
Replacement Shelf Model No. 29937
Shelf Depth 14" (35.6 cm)
Net Weight, lbs 313
Net Weight, kgs 141.97
Adjustable Shelf Yes
