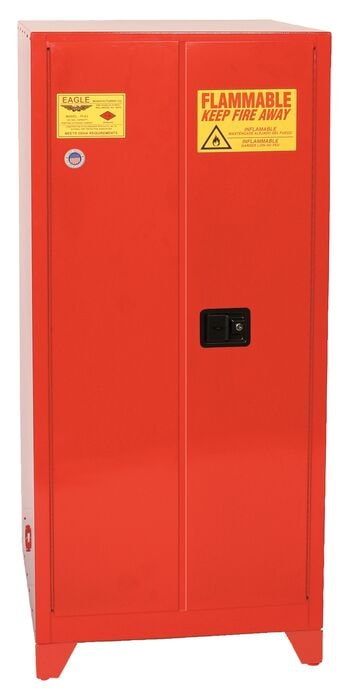

96 Gallon, 5 Shelves, 2 Doors, Manual Close, Paint Safety Cabinet, Tower™, Red - PI62XLEGS

Model No
PI62XLEGS
$2,200.00

Made in USA

Usually ships in 7 days

Need a bulk or special order? Get a quote

Compliance OSHA ComplianceComplies with NFPA Code 30
Approvals FM Approval

Description:

Eagle 96 Gallon, manual close, Tower™ Paint and Ink Safety Cabinets come with additional shelves to maximize storage space and have 4 in (10.2 cm) adjustable legs. Constructed of 18-gauge (1 mm) steel, the sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements.

Product Summary:

  • Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
  • Constructed of 18-gauge steel
  • Lead-free, high-gloss, baked-on powder finish
  • Continuous piano hinges
  • Ground connection
  • Four adjustable galvanized leveling legs
  • Trilingual warning labels
  • 2 in (5.1 cm) raised leakproof sill
  • Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
  • Internal and external welded construction
  • Two 2 in (5.1 cm) internal vents with fire baffle and cap
  • Flush mounted door handle with key lock
  • Three-point stainless steel bullet latching system
  • 3 in (7.6 cm) centers for shelf brackets
  • Self-latching doors
  • Door closings: Manual Close (180° opening)

Documentation

There are no file attachments for this product.

Specifications

More Information
Model No PI62XLEGS
Color Red
Material Specifications 18-Gauge Steel
FM Approval Yes
OSHA Compliance Yes
Complies with NFPA Code 30 Yes
Door Style Manual Close
UPC Code 048441692026
Dimensions, Exterior 34W x 34Dx 69H
Dimensions, Interior 30.75" W x 30.34" D x 60.5" H (78.1 x 77.1 x 153.7 cm)
Number of Doors 2
Number of Shelves 5
Uniform Fire Code No
Lock Yes
Gallon Capacity 96
Liter Capacity 363.4
Fork Pockets Yes
Replacement Shelf Model No. 29944
Shelf Depth 29" (73.7 cm)
Net Weight, lbs 356
Net Weight, kgs 161.48
Adjustable Shelf Yes
