22 Gallon, 1 Shelf, 2 Door, Manual Close, Under Counter Acid and Corrosive Safety Cabinet, Blue - CRA71X

Model No
CRA71X
$1,279.00

Made in USA

Usually ships in 15 days Please contact customer service at
800-798-9250 for lead times.

Need a bulk or special order? Get a quote

Compliance OSHA ComplianceComplies with NFPA Code 30
Approvals FM Approval

Description:

Eagle 22 Gallon, manual close, Under Counter Acid Corrosive Safety Cabinet is constructed of 18-gauge (1 mm) steel. The sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a corrosion-resistant powder coat finish and includes trilingual warning label, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Includes poly shelf and sump trays to help contain small spills and provide extra corrosion protection. Not recommended for use with Sulfuric, Nitric or Hydrochloric acids. Cabinets are FM-approved and meet NFPA Code 30 and OSHA requirements.

Product Summary:

  • Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
  • Constructed of 18-gauge steel
  • Lead-free, high-gloss, baked-on powder finish
  • Continuous piano hinges
  • Ground connection
  • Four adjustable galvanized leveling legs
  • Trilingual warning labels
  • 2 in (5.1 cm) raised leakproof sill
  • Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
  • Internal and external welded construction
  • Two 2 in (5.1 cm) internal vents with fire baffle and cap
  • Flush mounted door handle with key lock
  • Three-point stainless steel bullet latching system
  • 3 in (7.6 cm) centers for shelf brackets
  • Self-latching doors
  • Door closings: Manual Close (180° opening)

Specifications

More Information
Model No CRA71X
Color Blue
Material Specifications 18-Gauge Steel
FM Approval Yes
OSHA Compliance Yes
Complies with NFPA Code 30 Yes
Door Style Manual Close
UPC 048441690725
Dimensions, Exterior 35W x 22Dx 35H
Dimensions, Interior 31.75" W x 18.75" D x 26.5" H (80.6 x 47.6 x 67.3 cm)
Number of Doors 2
Number of Shelves 1
Uniform Fire Code No
Lock Yes
Gallon Capacity 22
Liter Capacity 83.28

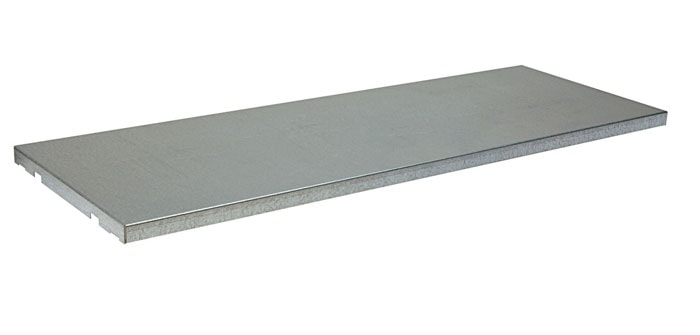

Replacement Shelf Model No. 29939
Pallet Quantity 1
Shelf Depth 18" (45.7 cm)
Net Weight, lbs 154
Net Weight, kgs 69.85
Adjustable Shelf Yes
