Tray Attachment for Utili-Guard+™ Flammable Cabinets - 29025

Model No
29025
In Stock
$60.00

Usually ships in 1 - 2 business days

Made in USA

Product Summary

  • Ideal for creating customized storage for essential products
  • Open tray dimensions: 3.5"H × 17.9"W × 4"D for small flammables
  • Max of 4 attachments per door (45/90 gal); 2 per door (30 gal)
  • Easy to install or move
  • Use ONLY on Utili-Guard+ flammable cabinets

Specifications Download Specification PDF

Model No 29025
Accessory Type Door Attachment
UPC 697841274600

Description

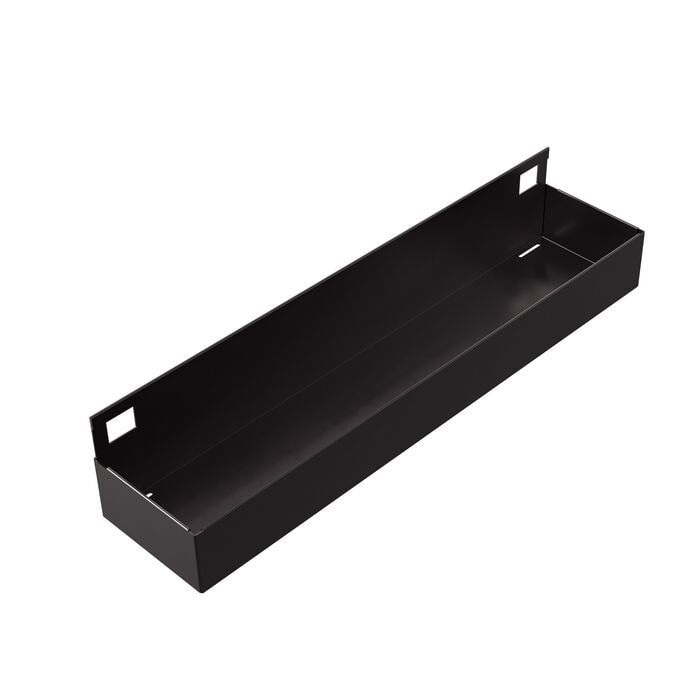

The optional Tray Attachment for Utili-Guard+™ flammable cabinets lets you safely organize and access small paint and stain canisters, bottles, tools, or other loose items right on your cabinet door. Constructed of strong steel and measuring 3.5” high x 17.9” wide x 4” deep, this 2.7 lb tray installs in seconds using your flammable cabinet’s integrated door brackets for secure, tool-free mounting.

Tray Attachments for Utili-Guard+ flammable cabinets are fully interchangeable and designed to be mixed and matched with other door accessories—including aerosol can, spray bottle, and caulk tube attachments—so you can build an interior layout that supports your changing workflow and storage requirements. Add more trays as needed to maximize usable space and keep work essentials where you need them most.

Attachment and Installation Guidelines:

  • 30-gallon Utili-Guard+ flammable cabinets: maximum 2 attachments per door, 17 lbs per door
  • 45-gallon and 90-gallon Utili-Guard+ flammable cabinets: maximum 4 attachments per door, 35 lbs per door
  • For top attachment use, maintain at least 1.5" clearance from the top edge of the door
  • Make sure both brackets are straight and fully engaged by pushing downward
  • If storing safety cans, turn funnels toward the side or back to avoid contact with door attachments

The Tray Attachment for Utili-Guard+ flammable safety cabinets provides instant organization, reduces clutter, and allows you to adapt your storage for greater capacity and productivity.

Need other door attachments for the Utili-Guard Cabinet to customize your workflow? Justrite supplies additional aerosol can attachments, spray bottle attachments, and caulk tube attachments. Other accessories for this line include the Tower Leg Kit and Skid Leg Kit.

Note: Door attachments are for usage with the Utili-Guard+ flammable cabinets ONLY. Other standard flammable cabinet models do not have the inner space to accommodate door shelves.

Specifications

More Information
Model No 29025
Accessory Type Door Attachment
UPC 697841274600
Color Black
Material Specifications Steel
Interior Dimensions, inches 3.46 inch H x 17.87 inch W x 3.6 inch D
Interior Dimensions, mm 87.96mm H x 454mm W x 100.6mm D
Net Weight, lbs 2.7
Net Weight, kgs 1.22

Transform your workspace with the Utili-Guard+ Flammable Safety Cabinet, where state-of the-art safety meets fully customizable door storage.

Its sleek, space-saving design replaces two cabinets and delivers 4 extra cubic feet, unlocking greater efficiency and productivity.

The Utili-Guard+ Flammable Safety Cabinet is designed to address challenges faced by facilities that need to store flammable liquids securely and efficiently.

Limited Internal Capacity & Clutter

Unlock 28% more storage with the Utili-Guard+™ flammable safety cabinet. Its deep, door-mounted design gives you more room for flammable liquids, without  sacrificing internal capacity.

Compliance Risks

Avoid costly penalties and protect your team with Utili-Guard+™ flammable safety cabinet. Engineered for OSHA, NFPA, IFC compliance,  and FM approved, it keeps  storage safe, secure, and always  inspection ready.

Inefficient Access & Disorganized Storage

Our door-mounted, customizable storage keeps essentials front and center, no searching needed. Experience instant  access and a streamlined, safer workflow.

Limited Floor Space

Revolutionize your space with our 2-in-1 design, maximized storage in a single, space-saving unit for all the capacity you need, without the clutter.

Cost Concerns

Get more with Utili-Guard+™ cabinets, extra capacity and organization for just 2–3% more than standard cabinets

Proven Justrite Safety

Beyond their advanced innovations, Utili-Guard+ Safety Cabinets also deliver the full set of trusted Justrite safety features that have protected workplaces for decades.

  • 18-Gauge Double-Wall Steel with Air Gap
  • Self-Closing Doors
  • Dual Side Vents with Flame Arrestors
  • 2” Leakproof Bottom Sump
  • Grounding Protection
  • Patented SpillSlope® Shelves
  • Chemical-Resistant Powder Coat Finish
  • FM Approved, OSHA & NFPA Compliant
  • Meets International Fire Code

Customize to Fit Your Safety  Needs

Utili-Guard+ Flammable Cabinets come standard with two shelf attachments: one for aerosol cans, and one for spray bottles. Add additional door attachments (sold separately) for your specific needs:

Note: max 4 door attachments per door for 45 and 90 gallon models; max 2 door attachments per door for 30 gallon models

Stand Above the Rest

Further upgrade your Utili-Guard+ Cabinet by adding a tower leg kit (#29033) or a skid leg kit (#29034), allowing quick relocation of your cabinet with any standard pallet jack.

30 gallon Utili-Guard+ Safety Cabinet with #29033 Tower Leg Kit
45 gallon Utili-Guard+ Safety Cabinet with #29034 Skid Leg Kit

Utili-Guard+ Flammable Cabinet User Cautions

For safe operation and proper use of the Utili-Guard+ Flammable Cabinets, please review all user cautions before installing or using attachments. Always follow the specified limits for attachments and weight, and check installation guidelines to avoid potential hazards. Detailed instructions and safety precautions can be found on the dedicated user cautions page.

What’s at Stake Without a Safety Cabinet?

Without a clean, organized, compliant flammable cabinet, your facility is exposed to unnecessary risks.

U894520 utili-guard flammable cabinet in warehouseU894520 utili-guard flammable cabinet in warehouse

One violation can cost $16,550 in fines, not including downtime, lost contracts, or damage from unsafe storage.

Lower Productivity

Cluttered shelves and disorganized chemicals slow down your team.

Fines & Shutdowns

OSHA and NFPA violations can cost thousands of dollars per incident.

Dangerous Workplaces

Improperly stored flammables increase the risk of costly fires, injury, and even death.
