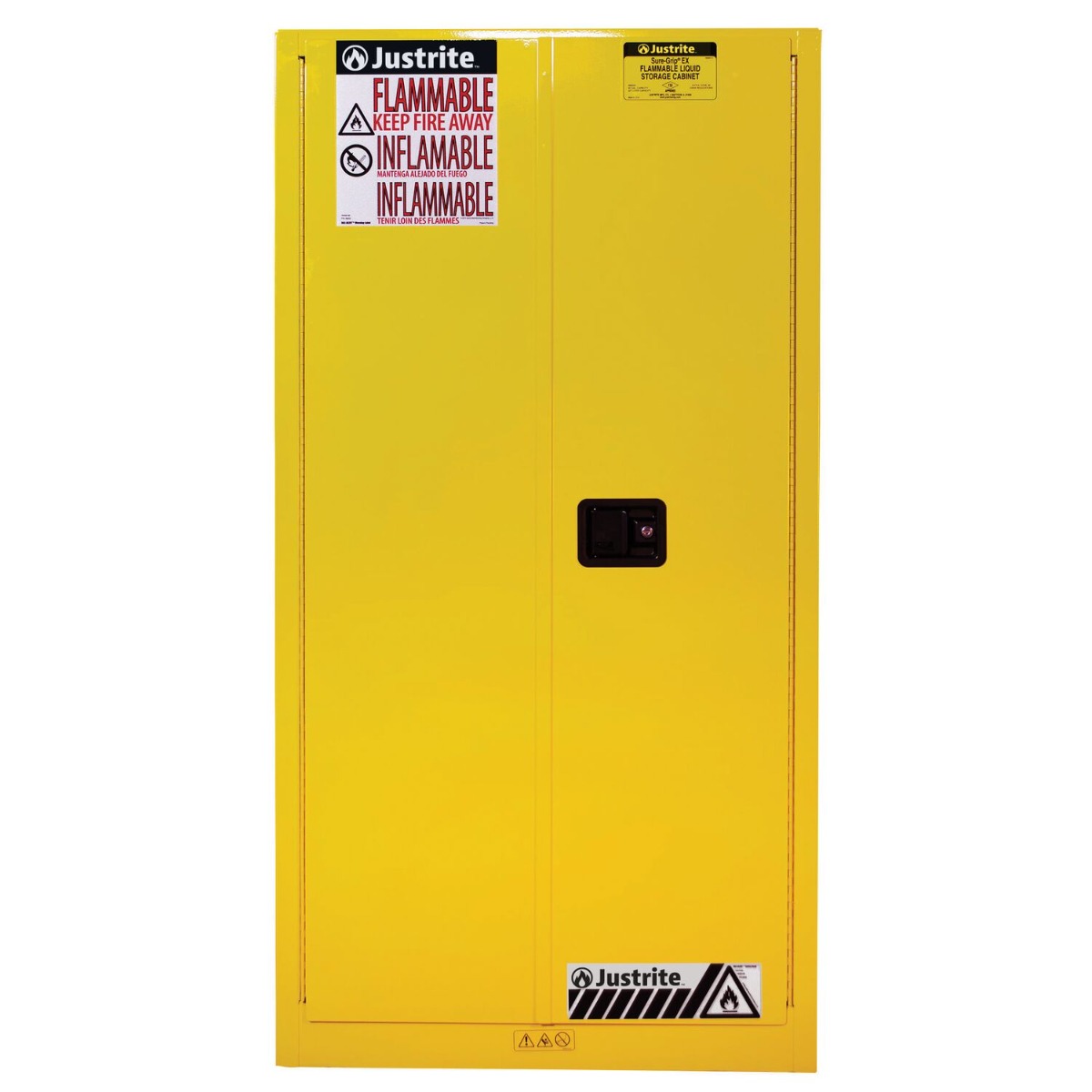

One of the leading causes of industrial fires is the improper storage and handling of flammable liquids. The Justrite Standard Sure-Grip® EX Flammable Safety Cabinet with Self-Close Doors (model 896020) is designed to safely store flammable liquids. Its exterior dimensions are 65 in H x 34 in W x 34 in D (1651 mm H x 864 mm W x 864 mm D). These yellow cabinets can store 60 gal (227 L) of flammable liquids.
This model is constructed with a sturdy 18-gauge (1-mm) thick steel double-wall, with 1.5 in (38 mm) of insulating air space for fire resistance. The fully welded, not riveted, construction holds the squareness of the unit for a longer life and offers greater protection in a fire since air gaps are reduced.
Looking for a custom safety cabinet? Request a quote here for your storage requirements.
High-performance, self-closing doors open to 140 degrees. A patented, concealed self-close mechanism provides obstruction-free access to shelf space. The doors self-index to guarantee they will close in tight sequence. Continuous piano hinges ensure the doors close smoothly every time.
When used properly as designed, safety cabinets with self-closing doors shut automatically in case of a fire. The self-closing doors, under tension, are held open by using fusible links. Under fire conditions, when the ambient temperature reaches 165 F (74 C), the links melt and the safety cabinet’s self-closing doors automatically swing shut. The self-latching system engages with three stainless steel bullet-slams located at the top, bottom, and center locations of the door. For replacement fusible links, order model 29988.
For added security, each cabinet comes with an innovative U-Loc™ handle that does not require manual rotation to engage the mandatory latch. Cabinets include a cylinder lock and key set, or you can choose to use your own padlock. Trilingual Haz-Alert™ reflective warning labels that read "FLAMMABLE – KEEP FIRE AWAY" are highly visible under fire conditions or during power outages when illuminated with a flashlight.
Model 896020 features two patented, galvanized steel SpillSlope® shelves designed to direct spills to the back and bottom into a 2-in (51-mm) leak-tested sump that meets EPA requirements. Adjustable on 3-in (76-mm) centers, all SpillSlope shelves meet ANSI MH28.1 standards with a 350-lb (159-kg) safe allowable load. Welded shelf hangers interlock with the shelf to offer maximum stability with no flimsy brackets to lose. For replacement shelves, use model 29944.
The cabinet also features dual vents with flame arresters, four adjustable self-leveling feet, and a built-in grounding connector. Its durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance inside and out, as well as minimizes the effects of corrosion and humidity.
Justrite supplies more than 300 safety cabinet models ranging from 4- to 115-gal (15- to 435-L), to meet a versatile range of safety, compliance, and storage requirements.
All Justrite cabinets carry a 10-year warranty. Model 896020 is tested and approved by FM Approvals. It complies with OSHA, NFPA 30, NFPA 1, and IFC requirements.
The requirements for handling and storing chemicals are complex and depend on how flammable the liquid is. There is no room for error, so it is critical to choose a safety cabinet that has been independently tested to meet the standards of your industry and local jurisdictions. Not just any safety cabinet will do. Justrite flammable cabinets are best in class and are trusted within a wide range of industrial settings across the world, including laboratories, manufacturing, oil refineries, chemical processing plants, and more.
For more information, please consult our workplace safety article about the requirements for flammable liquid storage.
| Model No | 896020 |
|---|
Its sleek, space-saving design replaces two cabinets and delivers 4 extra cubic feet, unlocking greater efficiency and productivity.
Unlock 28% more storage with the Utili-Guard+™ flammable safety cabinet. Its deep, door-mounted design gives you more room for flammable liquids, without sacrificing internal capacity.
Avoid costly penalties and protect your team with Utili-Guard+™ flammable safety cabinet. Engineered for OSHA, NFPA, IFC compliance, and FM approved, it keeps storage safe, secure, and always inspection ready.
Our door-mounted, customizable storage keeps essentials front and center, no searching needed. Experience instant access and a streamlined, safer workflow.
Revolutionize your space with our 2-in-1 design, maximized storage in a single, space-saving unit for all the capacity you need, without the clutter.
Get more with Utili-Guard+™ cabinets, extra capacity and organization for just 2–3% more than standard cabinets
Beyond their advanced innovations, Utili-Guard+ Safety Cabinets also deliver the full set of trusted Justrite safety features that have protected workplaces for decades.
Utili-Guard+ Flammable Cabinets come standard with two shelf attachments: one for aerosol cans, and one for spray bottles. Add additional door attachments (sold separately) for your specific needs:
Note: max 4 door attachments per door for 45 and 90 gallon models; max 2 door attachments per door for 30 gallon models
Further upgrade your Utili-Guard+ Cabinet by adding a tower leg kit (#29033) or a skid leg kit (#29034), allowing quick relocation of your cabinet with any standard pallet jack.
For safe operation and proper use of the Utili-Guard+ Flammable Cabinets, please review all user cautions before installing or using attachments. Always follow the specified limits for attachments and weight, and check installation guidelines to avoid potential hazards. Detailed instructions and safety precautions can be found on the dedicated user cautions page.
